260 * 95 * 82mm ac cross flow fan industry ventilation fan tangential blower fan MX60180CUM
60U * 180 series cross flow fan, it has low noise and long life expectancy*, being widely used in the industrial production equipment , medical instruments, home appliances , etc .
Product material:
Impeller: fan impeller with aluminum-magnesium alloy, light weight, high strength, air volume, low noise, low vibration, good temperature, long life advantages.
Duct: the guard board with SPGC 1.0T (0.6-1.0 depending on the different specifications may be)
Connection: EPDM anti-fatigue high temperature silicone rubber parts
Bearing: original imported bearings
Motor: AC: AC cover motor, AC capacitor motor, (plastic motor)
The operating voltage is: AC110V, AC220V, 50 / 60HZ
Product performance:
Insulation class: standard for the E-class, (up to H level)
Insulation withstand voltage: AC 1500V, 1 minute (up to 3500V, 1 minute)
Insulation resistance: DC 500V 100M or more
Use temperature: -15 ℃ ~ +70 ℃ (up to -50 ℃ ~ +120 ℃)
Specifictaion and Dimention:
| Model | Size(mm) | Rated voltage (v) | Rated Frequency(Hz) | Rated Current (A) | Input Power(W) | Speed (rpm) | Max Static Pressure (mmAq) | Air Flow (m3/mim) | Noise Leve (dB-A) | Weight (g) |
| A | B | C |
| MX60180CUM11 | 181 | 193 | 154 | 110 | 60 | 0.49 | 41 | 2300 | 6 | 3 | 48 | 1350 |
| MX60180CUM22 | 220 | 50 | 0.26 | 30 | 2300 | 6 | 3 | 48 |
Application:
More cross flow fan:

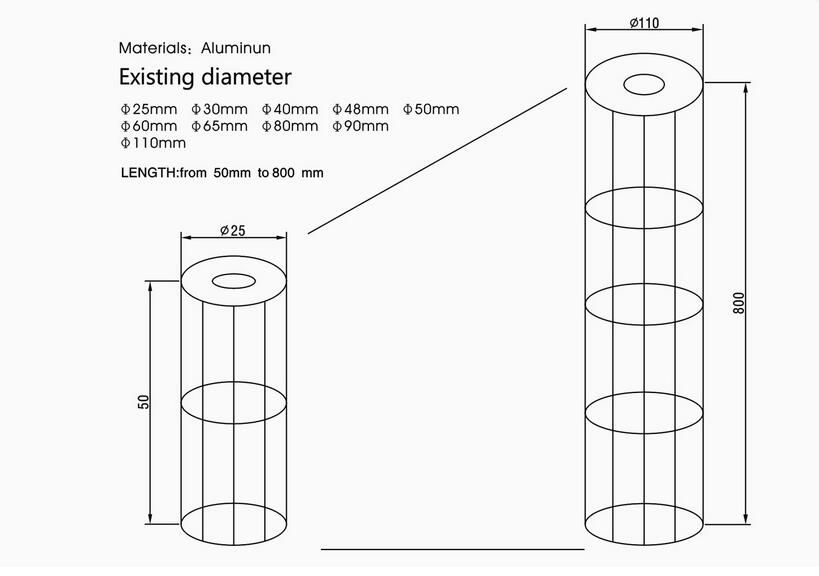

Product introduction: The impeller diameter from 25mm to 110mm, length from 50mm to 800mm can be made! Its specifications are: Φ25, Φ30, Φ40, Φ43, Φ48, Φ50, Φ60, Φ65, Φ80, etc. 9 series covers more than 600 specifications such as AC and DC!
